Feature
· 31-band Graphic EQ per channel (front L/R, rear L/R, centre, subwoofer: 10-band), Gain -12dB to +12dB
· Parametric EQ (front L/R 10-band, rear L/R 10-band, subwoofer 5-band, center 10-band), Q 0.5/1/1.5/2/2.5/3/4/5, Gain -12dB to +12dB
· 8 x 25W RMS outputs (mirrors the first 8 RCA outputs)
· 6 Low and/or High-level inputs
· 12 RCA outputs
· Digital Time Correction
· TI 32-bit DSP with 300MHz floating point processing
· TI 24-bit premium audio ADC/DAC
· S/PDIF Digital Coax Input
· Optical Digital Input
· Sound Tuning via Smartphone App
· Sound Tuning via PC Software
· USB Port for Computer Setup
· Remote Controller Included
· Bluetooth Module Included
· Bluetooth Audio Streaming
· System integration sound processor for use when adding amplifiers to a factory or aftermarket head unit
· Matrix mixing allows for summing and input/output signal management
· High pass, low pass, and bandpass, independent filters per channel
· Specialised type filtering: Butterworth, Linkwitz-Riley, Bessel
· Save and share tuning presets
· Source Selection: Bluetooth® Audio, High-level input (head unit signal), S/PDIF input, Analog Aux inputs (aftermarket head unit signal)
· Dash-mounted remote controller included for Volume, Preset store/recall, Source Selection
· Option to be used in stand-alone mode without the remote controller plugged in

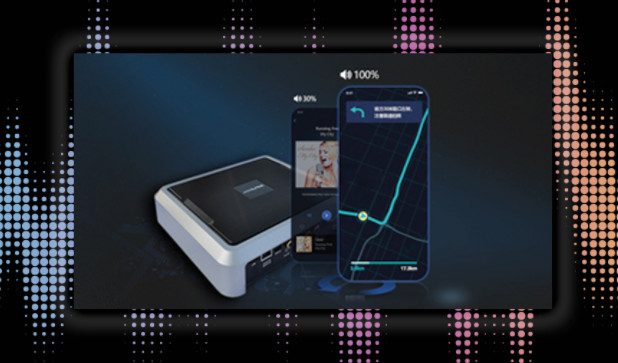

· Navi Mix Function to enable factory navigation instructions, while listening PXE-0850X sound source
Optimize the wire control to improve operability
Add the mixing function
Add dedicated interface for delay
Split screen display, adding delay group, more convenient operation!
Optimize IU style
Full-frequency mode is added, and each channel can be set to full frequency mode, which solves the problem that channels cannot be distributed in projects such as audition rooms and RVs to reduce the setting time.
Graphic EQ number of frequency
· Front (left and right): 31 bands
· Rear (left and right): 31 bands
· Center: 31 bands
· Subwoofer: 10 bands
· Graphic EQ boost cut range: +-12 dB (in 0.5 dB steps)
Parametric EQ number:
· Front/Rear/Center: 10 bans
· Subwoofer: 5 bands
Parametric EQ frequency:
Front/Rear/Center:
20/22/25/28/31.5/36/40/45/50/56/63/71/80/90/100/110/125/140/160/180/200/220/250/280/315/360/
400/450/500/560/630/710/800/900/1k/1.1k/1.2k/1.4k/1.6k/1.8k/2k/2.2k/2.5k/2.8k/3.2k/3.6k/4k/
4.5k/5k/5.6k/6.3k/7.1k/8k/9k/10k/11k/12.5k/14k/16k/18k/20k(Hz)
Filters / Time Correction:
· Frequency range: 20Hz ~ 20KHz, 1Hz steps
· Q: 0.404 ~ 28.85, 0.01 steps
· Gain: -12.0dB ~ +12.0 dB, 0.1 dB steps
· Filter crossover points: 20Hz – 20KHz. 1Hz steps
· Slopes: 12dB, 18dB, 24dB, 30dB, 36dB, 42dB, 48dB
· Up to 20ms of time delay per channel
· Delay units: 0.000 to 20 milliseconds, 0.00 to 692 centimetres, 0.00 to 273 inches 0 deg. or 180 deg. phase adjustment per channel
Technical:
· Power Supply: DC 9V – 15V
· Dynamic Range: ≥110dB
· Signal to Noise Ratio: ≥100dB
· Frequency Response: 20Hz – 20kHz
· Power Rating: 25W RMS x 8 (4Ω,<1% THD+N, 14.4V)
Dimensions:
· Width: 169.0 mm (6-3/4″)
· Height: 50.8 mm (2″)
· Depth: 215 mm (8-1/2″)
· Weight: 1.5 kg
